Menşe yeri:
Şangay, Çin
Marka adı:
carterberg
Sertifika:
IATF16949
Model numarası:
CB-4

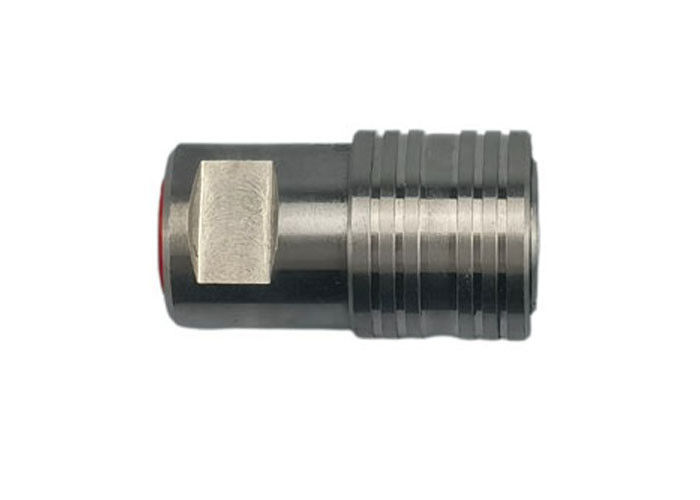

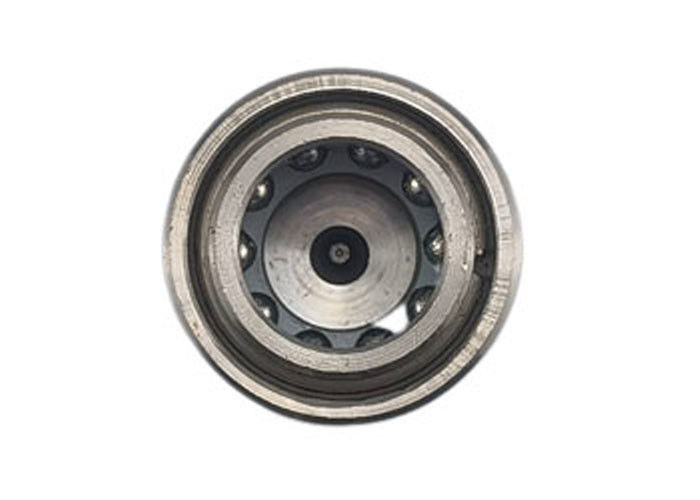

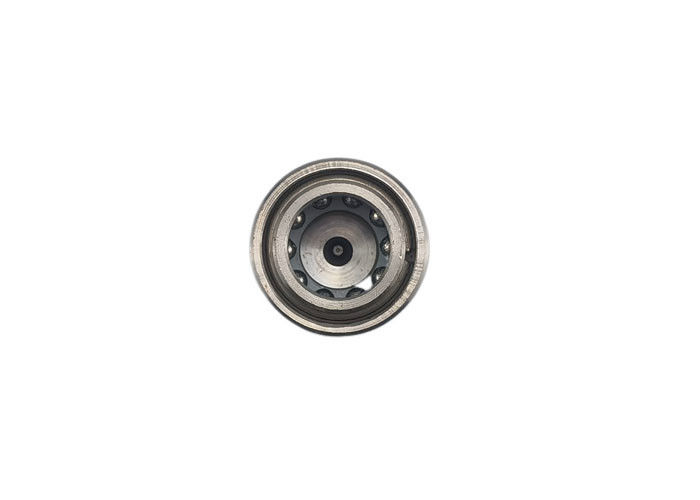

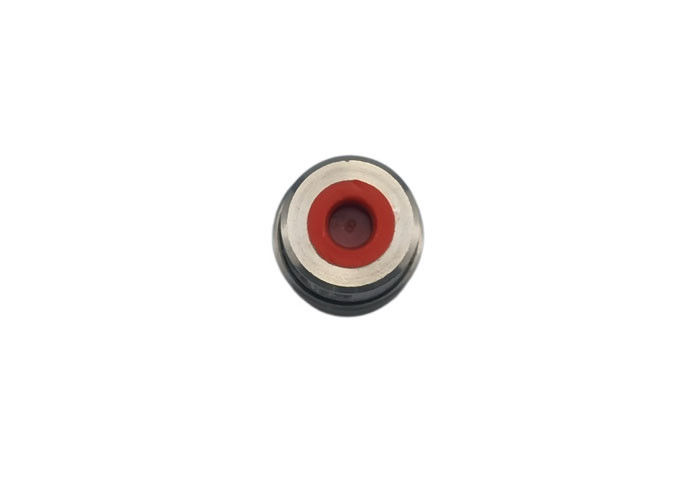

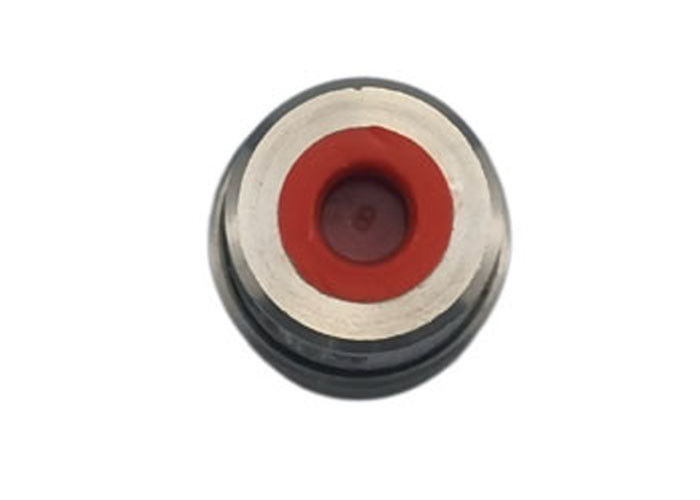

CB-4 Series brings to the industry a proven design for use on construction equipment, forestry Equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/4" | CB-S2S-4FN | 1/4-18 | 53.5 | 27.6 | 19 |
| 1/4" | CB-S2S-4FG | 1/4-19 | 53.5 | 27.6 | 19 |
| 3/8" | CB-S3S-4FN | 3/8-18 | 63 | 34 | 24 |
| 3/8" | CB-S3S-4FG | 3/8-19 | 63 | 34 | 24 |
| 1/2" | CB-S4S-4FN | 1/2-14 | 66.3 | 38.6 | 27 |
| 1/2" | CB-S4S-4FG | 1/2-14 | 66.3 | 38.6 | 27 |
| 3/4" | CB-S6S-4FN | 3/4-14 | 82.5 | 48.2 | 34 |
| 3/4" | CB-S6S-4FG | 3/4-14 | 82.5 | 48.2 | 34 |
| 1" | CB-S8S-4FN | 1-11 1/2 | 96.5 | 56 | 41 |
| 1" | CB-S8S-4FG | 1-11 | 96.5 | 56 | 41 |
| Body Size | PARTNO. | Thread | C | D | E | HEX |
| 1/4" | CB-P2S-4FN | 1/4-18 | 18.5 | 12.5 | 36 | 19 |
| 1/4" | CB-P2S-4FG | 1/4-19 | 18.5 | 12.5 | 36 | 19 |
| 3/8" | CB-P3S-4FN | 3/8-18 | 22 | 13 | 40 | 24 |
| 3/8" | CB-P3S-4FG | 3/8-19 | 22 | 13 | 40 | 24 |
| 1/2" | CB-P4S-4FN | 1/2-14 | 27 | 16 | 43.5 | 27 |
| 1/2" | CB-P4S-4FG | 1/2-14 | 27 | 16 | 43.5 | 27 |
| 3/4" | CB-P6S-4FN | 3/4-14 | 32 | 19 | 53.5 | 34 |
| 3/4" | CB-P6S-4FG | 3/4-14 | 32 | 19 | 53.5 | 34 |
| 1" | CB-P8S-4FN | 1-11 1/2 | 38 | 21 | 63 | 41 |
| 1" | CB-P8S-4FG | 1-11 | 38 | 21 | 63 | 41 |
