Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Malzeme: | çelik | Standart: | ISO5675 |
|---|---|---|---|
| Boyut: | 1" | Adlık basınç: | 3000psi |
| Nominal akış: | 50GPM | Sıcaklık: | -20°C~120°C |
| Başvurular: | Tarım makineleri | İle uyumlu: | PARKER4000 Serisi ve FASTER NV/NS Serisi |
| Vurgulamak: | Construction Hydraulic Quick Coupling 3000PSI,ISO 5675 Stainless Steel Air Couplers,Ball Valves Hydraulic Stainless Quick Coupler |
||

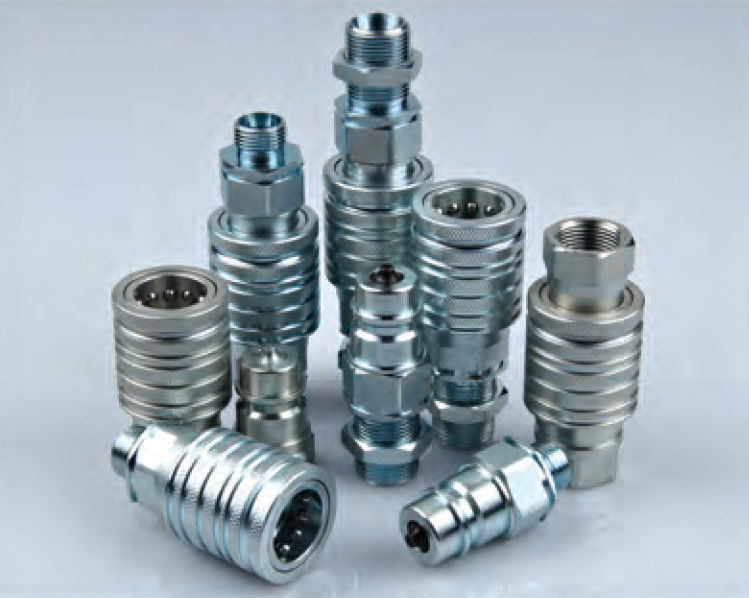

Applications: The ISO5675 Series brings to the industry a proven design for use on construction equipment, forestry Equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Specifications:
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 5000 | 4000 | 4000 | 3000 | 3000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range(std seals) | -20℃ to +120℃ | ||||
| Standard seal material | NBR | ||||
Features
| ISO | PARTNO. | LS | ￠D | HEX1 | A | T |
| 6.3 | CB-S2S-5F | 53.5 | 27.6 | 19 | 12.5 | G1/4 NPT1/4 |
| 10 | CB-S3S-5F | 63 | 34 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | CB-S4S-5F | 66.3 | 38.6 | 27 | 16 | G1/2 NPT1/2 |
| 20 | CB-S6S-5F | 82.5 | 48.2 | 34 | 19 | G3/4 NPT3/4 |
| 20 | CB-S6S-5F(E) | 83.5 | 47.5 | 35 | 18 | G3/4 NPT3/4 |
| 25 | CB-S8S-5F | 96.5 | 56 | 41 | 21 | G1 NPT1 |
| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 6.3 | CB-P2S-5F | 36 | 14.2 | 18.5 | 19 | 12.5 | G1/4 NPT1/4 |
| 10 | CB-S3S-5F | 40 | 19 | 22 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | CB-S4S-5F | 43.5 | 20.5 | 27 | 27 | 16 | G1/2 NPT1/2 |
| 20 | CB-S6S-5F | 53.5 | 28 | 32 | 34 | 19 | G3/4 NPT3/4 |
| 20 | CB-S6S-5F(E) | 51 | 26.9 | 28.5 | 33.3 | 18 | G3/4 NPT3/4 |
| 25 | CB-S8S-5F | 63 | 31.3 | 38 | 41 | 21 | G1" NPT1" |
