Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Gövde Malzemesi: | Çinko üç değerli kaplama ile yüksek dayanıklılıklı karbon çelik | Türü: | bağlantı parçaları |
|---|---|---|---|
| Basınç: | 5000psi | Uygulama: | Madencilik ekipmanı |
| Adı: | Hidrolik Kaplin | Standart: | ISO9001 |
| Boyut: | 1'' | AKIŞ: | 189lpm |
| Vurgulamak: | ISO9001 Threaded Quick Connect,5000psi Threaded Quick Connect,SS hydraulic quick connectors |
||

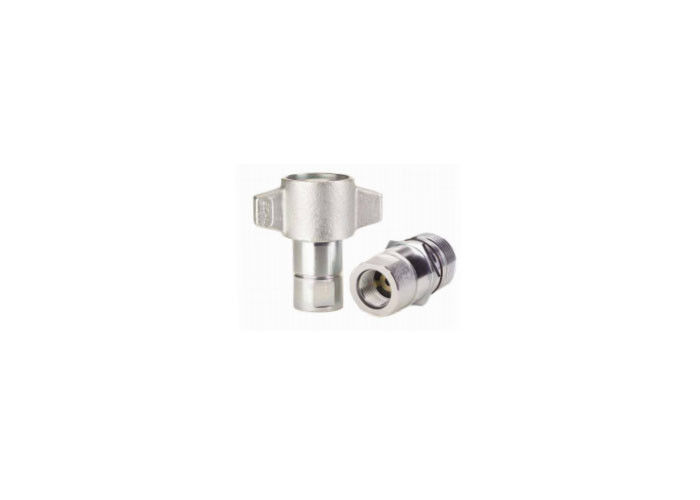

Thread to Connect 5,000 psi Dry Break and High Impulse technology steel quick coupling
CB-5-G Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi. The Series is available in either wing nut or hex nut configurations for ease of assembly and disassembly. (For higher pressure applications and additional size Applications • Hydraulic and fluid transfer • Mining equipment
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1" | CB-S8S-5FN-G | 1-11 1/2 | 4.98 | 4.50 | - |
| 1" | CB-S8S-5FN-G | 1-11 1/2 | 4.98 | 2.81 | 1.62 |
| 1" | CB-P8S-5FN-G | 1-11 1/2 | 4.40 | 2.11 | 1.75 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
