Menşe yeri:
Şangay, Çin
Marka adı:
carterberg
Sertifika:
IATF16949
Model numarası:
CB-5
Thread locked type hydraulic quick coupling Threaded Quick Connect

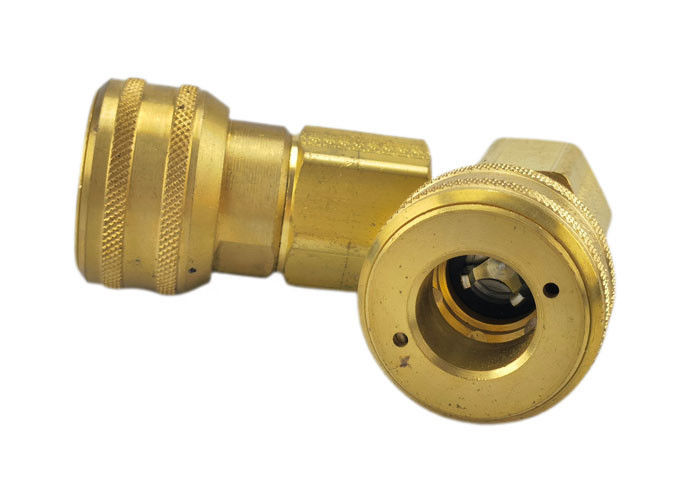

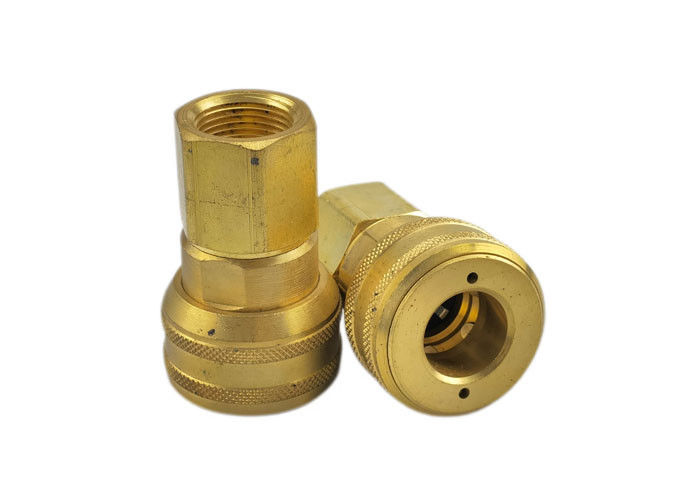

0.25 Inch Threaded Quick Connect , Brass Quick Release Coupling
Features
Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module D1 of the European Pressure Equipment Directive 97/23 EC. They should not be used to convey volatile gases.
Applications
All industrial and severe applications.Public works, offshore, lifting equipment, systems subject to heavy mechanical loads, high pressures
CB-5 Series couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.
Standard Materials
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/4" | CB-S2S-5FN | 1/4-18 | 53 | 35 | 19 |
| 1/4" | CB-S2S-5FG | 1/4-19 | 53 | 35 | 19 |
| 3/8" | CB-S3S-5FN | 3/8-18 | 65 | 38 | 23 |
| 3/8" | CB-S3S-5FG | 3/8-19 | 65 | 38 | 23 |
| 1/2" | CB-S4S-5FN | 1/2-14 | 74 | 45 | 27 |
| 1/2" | CB-S4S-5FG | 1/2-14 | 74 | 45 | 27 |
| 3/4" | CB-S6S-5FN | 3/4-14 | 91 | 55 | 35 |
| 3/4" | CB-S6S-5FG | 3/4-14 | 91 | 55 | 35 |
| 1" | CB-S8S-5FN | 1-11 1/2 | 103 | 69 | 41 |
| 1" | CB-S8S-5FG | 1-11 | 103 | 69 | 41 |
| Body Size | PARTNO. | Thread | C | D | HEX |
| 1/4" | CB-P2S-5FN | 1/4-18 | 35 | 15 | 19 |
| 1/4" | CB-P2S-5FG | 1/4-19 | 35 | 15 | 19 |
| 3/8" | CB-P3S-5FN | 3/8-18 | 42 | 19 | 23 |
| 3/8" | CB-P3S-5FG | 3/8-19 | 42 | 19 | 23 |
| 1/2" | CB-P4S-5FN | 1/2-14 | 50 | 22 | 27 |
| 1/2" | CB-P4S-5FG | 1/2-14 | 50 | 22 | 27 |
| 3/4" | CB-P6S-5FN | 3/4-14 | 63 | 29 | 35 |
| 3/4" | CB-P6S-5FG | 3/4-14 | 63 | 29 | 35 |
| 1" | CB-P8S-5FN | 1-11 1/2 | 71 | 36 | 41 |
| 1" | CB-P8S-5FG | 1-11 | 71 | 36 | 41 |
