Place of Origin:
Shanghai, China
Marka adı:
Carterberg
Sertifika:
IATF16949
Model Number:
CB-HYDRAV-KD
| Parameter | Value |
|---|---|
| Model | CB-HYDRAV-KD |
| Connection Type | Screw-to-connect with safety locking ring |
| Valve Type | Double shut-off, dry-break |
| Seal Material | EPDM 41B (Skydrol-compatible) |
| Body Material | Anodized Aluminum |
| Spring & Valve Material | Stainless Steel |
| Nominal Diameter Options | 1/4",3/4",1",1-1/2" |
| Working Pressure | Up to 450 bar (6525 psi) depending on size |
| Operating Temperature | -40°C to +150°C |
| Connection Standard | SAE AS 4395 interface |
| Spillage on Disconnect | 0.18 ml – 1.16 ml (size-dependent) |

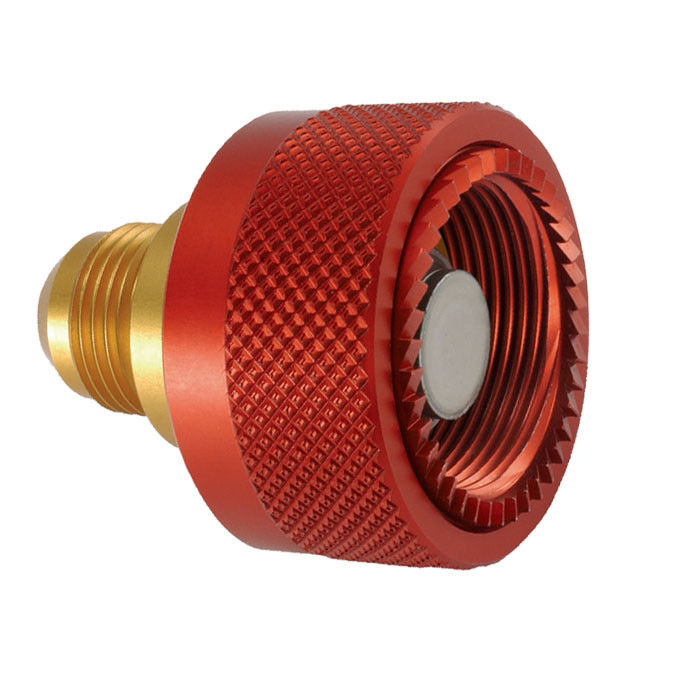

Female (Socket)
| Body Size | PARTNO. | A | B | C | HEX |
| 1/4" | CB-S2B-5MU-E | 41 | 39 | 14 | 14 |
| 3/4" | CB-S6B-5MU-E | 49 | 60 | 22 | 33 |
| 1" | CB-S8L-5MU-E | 79 | 70 | 23 | 48 |
| 1"1/2 | CB-S10B-5MU-E | 91 | 80 | 28 | 54 |

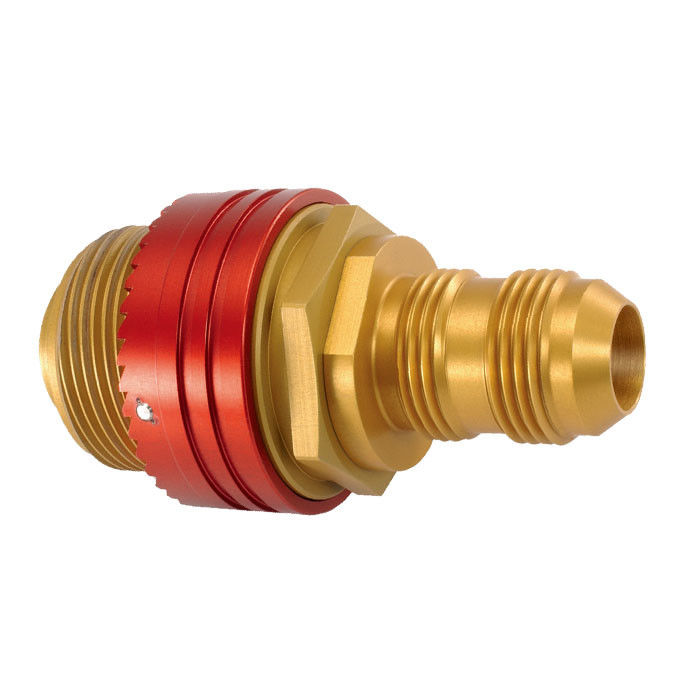

| Body Size | PARTNO. | D | E | F | HEX |
| 1/4" | CB-P2B-5MU-E | 35 | 25 | 14 | 29 |
| 3/4" | CB-P6B-5MU-E | 61 | 41 | 36 | 41 |
| 1" | CB-P8L-5MU-E | 73 | 60 | 23 | 54 |
| 1"1/2 | CB-P10B-5MU-E | 81 | 70 | 28 | 70 |
