Place of Origin:
Shanghai, China
Marka adı:
Carterberg
Sertifika:
IATF16949
Model Number:

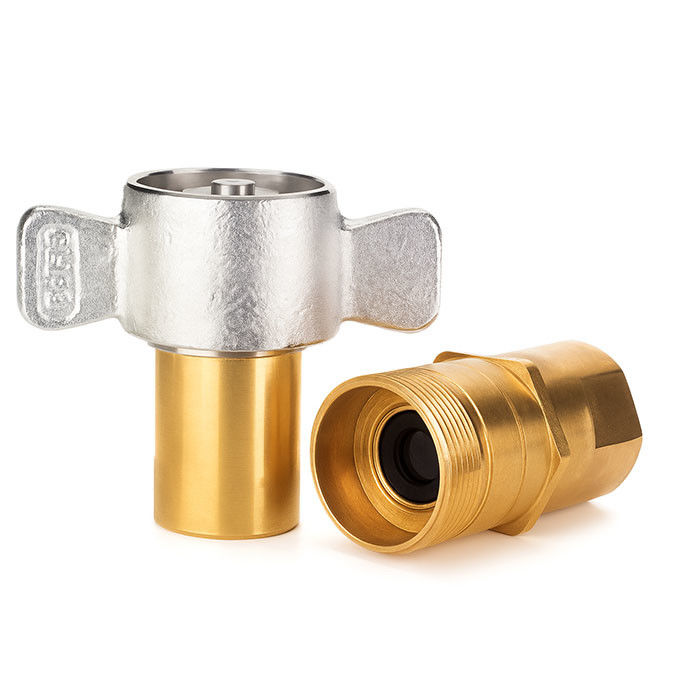

CB-SPB-3FN
| Parameter | Value |
|---|---|
| Model | CB-SPB-3FN |
| Connection Type | Thread-to-Connect |
| Valve Type | Tubular, Dual Shut-Off |
| Body Material | Brass |
| Thread/Locking Components | Zinc-plated carbon steel |
| Seal Material | Buna-N (standard) |
| Rated Working Pressure | Up to 3,000 psi |
| Connect Under Pressure | Yes – up to 500 psi |
| Size Range | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4" |
| Vacuum Rating | 28 inHg across all sizes |
| Operating Temperature | -20°C to +100°C (Buna) |
| Typical Flow Rate | 15 to 379 LPM depending on size |
Female (Socket)
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/8" | CB-P1B-3FN-A | 1/8-27 | 1.88 | 0.90 | 0.69 |
| 1/4" | CB-P2B-3FN-A | 1/4-18 | 2.58 | 1.05 | 0.94 |
| 3/8" | CB-P3B-3FN-A | 3/8-18 | 2.58 | 1.05 | 0.94 |
| 1/2" | CB-P4B-3FN-A | 1/2-14 | 3.11 | 1.38 | 1.19 |
| 3/4" | CB-P6B-3FN-A | 3/4-14 | 3.11 | 1.38 | 1.19 |
| 1" | CB-P8B-3FN-A | 1-11 1/2 | 3.55 | 1.74 | 1.56 |
Male (Plug)
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/8" | CB-S1B-3FN-B | 1/8-27 | 2.10 | 3.03 | 0.56 |
| 1/4" | CB-S2B-3FN-B | 1/4-18 | 2.40 | 3.44 | 0.76 |
| 3/8" | CB-S3B-3FN-B | 3/8-18 | 2.40 | 3.44 | 0.76 |
| 1/2" | CB-S4B-3FN-B | 1/2-14 | 3.07 | 4.13 | 1.16 |
| 3/4" | CB-S6B-3FN-B | 3/4-14 | 3.07 | 4.13 | 1.16 |
| 1" | CB-S8B-3FN-B | 1-11 1/2 | 3.68 | 4.38 | 1.44 |
